Ntoo Pellet Kab
Peb muab kev tsim qauv rau ntoo pellet kab nrog lub peev xwm sib txawv.Ua raws li cov khoom sib txawv ntawm cov yam ntxwv, sib sau ua ke cov tshuab tsim nyog tshaj plaws.Peb muab cov txheej txheem teeb tsa Hoobkas thiab teeb duab teeb tsa.OEM ntoo pellet kab raws li qhov koj xav tau yog qhov ua tau.
Hauj lwm lawm

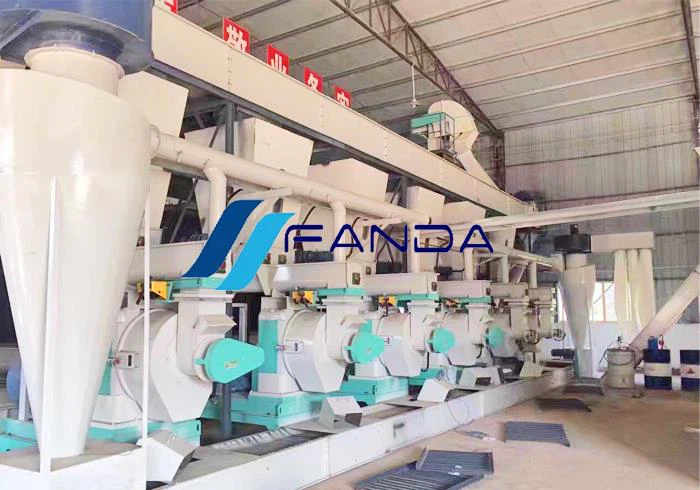

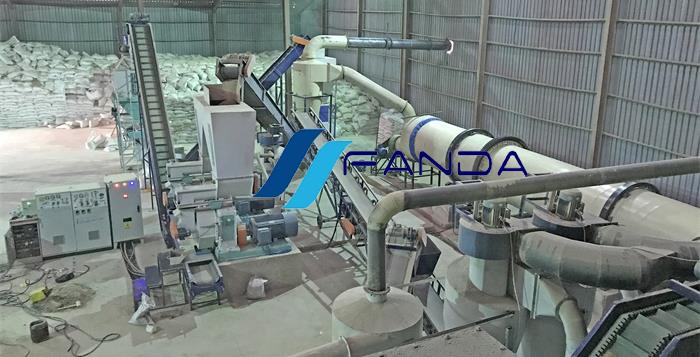

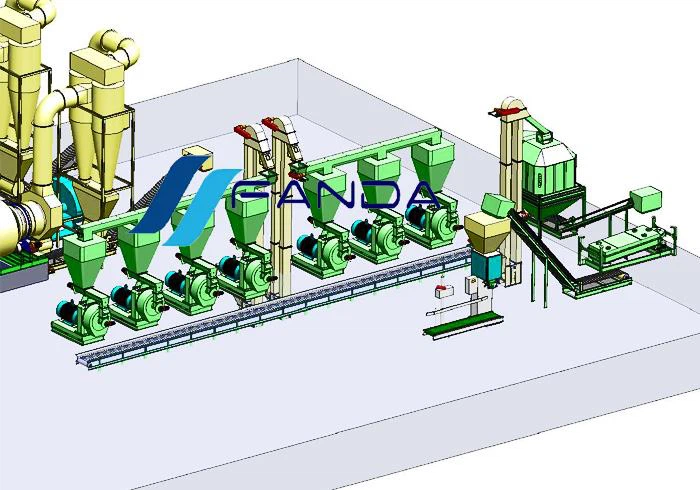

Ntoo pellet kab
Ntoo pellet kabyog tsim los ntawm cov tshuab sib txawv raws li cov yam ntxwv sib txawv ntawm cov khoom siv raw. Ua ntej pellet mills xav tau cov tshuab los ua qhov loj ntawm cov khoom siv raw me dua 5mm, ua cov dej noo ntawm cov khoom siv raw mus rau 12-15%. Feem ntau siv ntoo chipper thiab rauj zeb ua cov txheej txheem, siv cov tshuab ziab kom qhuav kom txo cov dej noo. Tom qab lub zeb pellet, yuav tsum tau txias kom txias lub pellets, lub tshuab ntim khoom feem ntau xav tau los ntim cov pellets rau hauv hnab. Sib nrug los ntawm cov tshuab tseem ceeb no, cov khoom siv ntxiv uas xav tau yog cov thauj khoom, lub tshuab cua, cua daj cua dub, cua kaw, de-duster, thiab hluav taws xob vaj huam sib luag.
Cov hauv qab no yog lub tshuab tseem ceeb sib sau ua ke rau 1t/h ntoo pellet kab, txiav txim siab cov khoom siv yog ntoo cav ntoo< 15cm,="" ya="" raws="" 40-50%,="" rau="" kab="" pellet="" no="" thawj="" zaug="" xav="" tau="" ntoo="" txiab="" txua="" ntoo="" cav,="" tom="" qab="" ntawd="" xav="" tau="" lub="" tshuab="" ziab="" khaub="" ncaws="" kom="" qhuav="" cov="" ntoo="" ntoo,="" tom="" qab="" ntawd="" cov="" dej="" tso="" rauj="" zeb="" yog="" qhov="" kev="" xaiv="" zoo="" tshaj="" plaws="" los="" tig="" cov="" chips="" rau="" sawdust,="" tom="" qab="" qhov="" kev="" npaj="" cov="" khoom="" siv="" raw,="" pellet="" zeb="" yuav="" siv="" cov="" txheej="" txheem="" no="" ua="" cov="" pellets="" thiab="" txias="" kom="" txias="" lub="" pellets,="" zaum="" kawg="" ntim="" cov="" pellets="" rau="" hauv="" hnab="" los="" ntawm="" pellet="" ntim="">
Yog tias ua DIN lossis EN + Cov txheej txheem pellets, cov tawv ntoo ntawm cov ntoo tsis tuaj yeem mus rau cov pellets, yog li thaum pib ntawm kab pellet, yuav tsum tau siv tshuab debarking ntoo.
Cov ntsiab lus thov xa mus rau cov lus piav qhia hauv qab no:
1. Disc ntoo chipper
Rau lub peev xwm me me pellet kab, lub tshuab txiav ntoo yog qhov muaj txiaj ntsig ntau dua, siv thaj chaw qis dua, thiab ua haujlwm yooj yim. Rau kab loj pellet, lub nruas ntoo chipper zoo dua.
Qauv | Lub cev muaj zog | Peev Xwm | Max pub ntoo txoj kab uas hla | Qhov hnyav |
TX680 | 22 kwv | 2-3t/h | 13cm ua | 1370 Kg |
2. Lub tshuab nruas teb
Lub tshuab ziab khaub ncaws qhuav yog lub tshuab ziab khaub ncaws zoo tshaj plaws kom qhuav ntoo, nws tuaj yeem txo cov dej noo mus rau 12-15%. Cov txheej txheem yog yooj yim, nyab xeeb, thiab yooj yim rau kev khiav lag luam, ob qho tib si cua sov thiab txuag hluav taws xob. Cov cua sov rau lub tshuab ziab khaub ncaws qhuav yog cov ntoo pov tseg, cov cav ntoo, cov ceg ntoo.
Qauv | Lub cev muaj zog | Peev Xwm | Nruas taub | Nruas ntev |
HJ1200 | 11 Kws | 1-1.2t/h | 1.2 m | 12m |

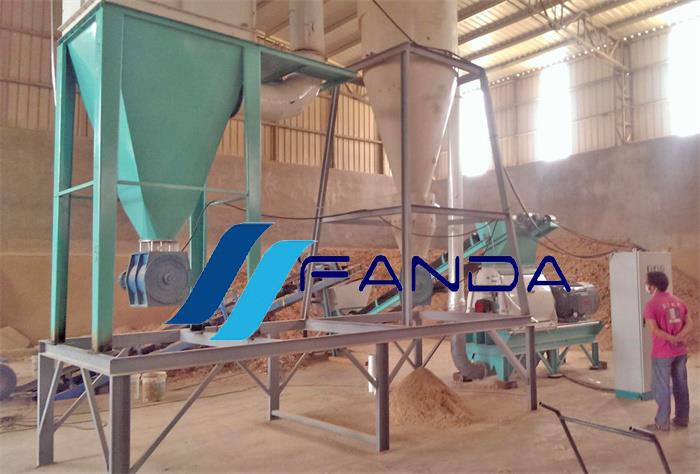

3. W
ater poob rauj zeb
Waterdrop rauj zeb tau siv dav hauv cov ntoo pellet kab los tsoo cov ntoo ntoo rau hauv sawdust vim tias qhov ua tau zoo thiab ruaj khov ntawm hom rauj zeb no zoo dua. Kev tswj hwm siv cov txheej txheem thev naus laus zis, uas yog qhov zoo rau kev tswj kab ntau lawm.
Peb feem ntau hais kom lub tshuab ziab khaub ncaws ua ntej rauj zeb rau hauv kab pellet, vim tias tom qab ziab cov chips tau yooj yim zom, thiab nws yuav txuag hluav taws xob hauv kev zom zaws. Tsis tas li rau rauj zeb, yog tias cov khoom siv ya raws siab dhau nws tsis yooj yim rau zuaj, ua rau cov khoom ntub yuav lo rau ntawm sab cib thiab thaiv qhov.
Qauv | Lub cev muaj zog | Peev Xwm | Kev sib hloov ceev | Rauj kom muaj nuj nqis |
ZW40A | 37 kwv | 1-1.5t/h | 2980rpm ib | 56ks ua |

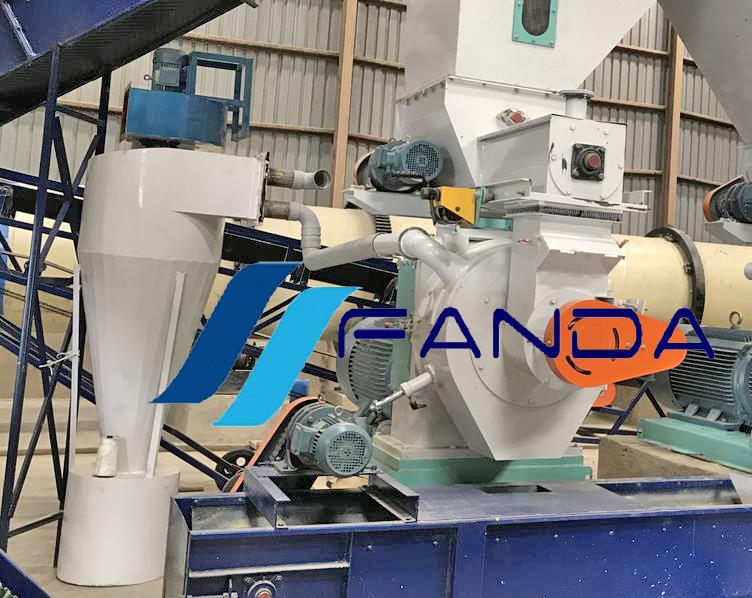

4. Lub nplhaib tuag ntoo pellet zeb
Lub nplhaib tuag pellet zeb MZLH420 tus qauv yog lub tshuab nrov tshaj plaws kom sib sau cov kab pellet, txij li thev naus laus zis tau paub tab, ua haujlwm tau yooj yim, ua haujlwm ruaj khov, thiab ua tau zoo kawg pellets.
Qauv | Lub cev muaj zog | Peev Xwm | Qhov ntev | Qhov hnyav |
ZWM 420 | 90 kwv | 1-1.2t/h | 2900x1100x2150 hli | 3000Kg |

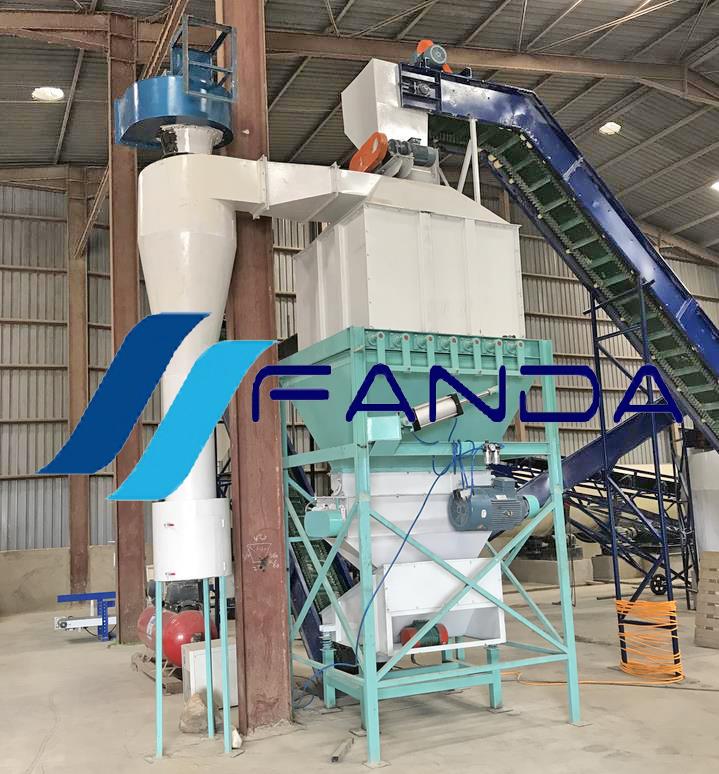

5. Pellet txias
Lub tshuab txias txias yog lub tshuab txias zoo tshaj plaws hauv kab ntoo pellet, nws tuaj yeem txias cov ntoo ntoo ntawm 70-80 Celsius mus rau chav sov. Lub tshuab txias kuj tseem ua ke nrog lub suab nrov kom tshem tawm qhov me me los ntawm cov pellets.
Txias cov pellets ua ntej ntim tuaj yeem txhim kho qhov tawv ntawm cov pellets.
Qauv | Lub cev muaj zog | Peev Xwm | Lub tshuab cua tshuab | Airlock qauv |
SKLN1.5 | 1.5 Kws | 1-1.5t/h | 5.5 Kws | TSI 2.8 |
6. Pellet ntim tshuab
Nws yog lub tshuab ntsuas qhov hnyav ua ke nrog lub hnab ntim khoom, nws tuaj yeem hnyav lub pellets, sau lub hnab thiab ntim lub hnab, peb muab ob hom foob foob rau ob lub hnab yas thiab hnab ntim.
Qauv | Lub cev muaj zog | Qhov hnyav ntau | Ntim ceev | Kev kam rau ua |
100A | 0.37Kw | 10-100kg/hnab | ≤ 300 hnab/teev | 0.2%F.S |
Peb Qhov Kev Pabcuam:
1. Tom qab kev teeb tsa thiab kev hloov kho, peb yuav qhia cov neeg siv khoom kom paub siv lub tshuab li cas;
2. Qhia cov neeg ua haujlwm kom tswj hwm li cas;
3. Raws li cov yam ntxwv ntawm cov cuab yeej siv, peb yuav tsim cov kev cai tswj hwm ua tiav rau koj (suav nrog yuav ua li cas thiaj tswj tau, thaum twg los tswj, thiab leej twg yuav tuav)
4. Peb lub tuam txhab' chav haujlwm tom qab muag yuav hu koj tsis tu ncua nug txog kev saib xyuas thiab muab tswv yim.
