Sawdust Pellet Ua Tshuab
tsim cov ntoo pellet nrog cov zis siab thiab siv hluav taws xob tsawg, lub neej ntev lub nplhaib tuag, txhua lub nplhaib tuag tuaj yeem ua tau 800-1000 tons pellets, nruab nrog lub npe thoob ntiaj teb cov kabmob, tsis siv lub tshuab lubricator xaiv rau lubricate cov kabmob
Hauj lwm lawm
MZLH420 sawdust pellet ua tshuab yog cov pellet nrov tshaj plaws ua tshuab ntawm kab rov tav tuag pellet mills, cov pellet ua tshuab yog tsim thiab tsim nyob rau hauv kev paub tab thev naus laus zis, nws yog lub tshuab tseem ceeb hauv cov ntoo pellet ntoo.
MZLH420 sawdust pellet ua tshuab siv lub nplhaib tuag txoj hauv kev, hauv cov pelletizing chamber rollers nias sawdust rau hauv lub qhov ntawm lub nplhaib tuag, thaum lub nplhaib tuag tig, sawdust raug nias tawm ntawm lub qhov thiab tau txais cov pellet. Lub tshuab txiav tuaj yeem kho qhov ntev ntawm cov pellets.
Peb MZLH420 sawdust pellet ua tshuab siv lub tshuab xa hluav taws xob, siv txuas txuas txuas 90Kw lub cev muaj zog rau lub iav, lub tshuab tuaj yeem tsav lub zog sab hauv lub iav ncaj qha, yog li txhim kho kev sib kis tau zoo.
Pelletizing chamber nqus |
Ntiv nplhaib tuag |
Cov menyuam plhaub |
MZLH420 tshuab pellet tshuab kev ntsuas
Qauv | ZWM 420 | 1. Nws tuaj yeem ua ntoo pellets nrog txoj kab uas hla 6mm, 8mm, 10mm 2. Qhov kev xaiv zoo tshaj plaws rau cov neeg uas xav ua ntoo pellets 3. Cov hmoov nplej zaum kawg tuaj yeem ua tau raws li EN lossis DIN ntxiv rau tus qauv 4. SFK thiab NSK cov npe nto npe kom paub tseeb tias kev ruaj ntseg ua haujlwm nrog suab nrov tsawg 5. Tshwj xeeb tshaj yog tsim cov txheej txheem lubrication ua rau lub lubrication yooj yim dua, tus neeg teb xov tooj tuaj yeem ntxiv roj rau cov kabmob txawm tias lub tshuab ua haujlwm peb kuj muaj lub tshuab ua kua tsis siv neeg, uas tuaj yeem ua kom cov kabmob nyob hauv qee lub sijhawm nrog qee qhov roj ntau 6. Cov cuab yeej tshiab tshaj plaws los tsim lub nplhaib tuag, zoo heev txuas ntxiv lub neej ntawm lub nplhaib tuag |
| Peev Xwm | 1-1.2t/h | |
| Lub cev muaj zog loj | 90 kwv | |
| Pub auger lub cev muaj zog | 2.2 Kws | |
| Auger tig ceev | 20-120rpm | |
| Quab yuam feeder motor | 1.5 kwv | |
| Ntiv nplhaib tuag sab hauv | 420 hli | |
| Lub nplhaib tuag tig nrawm | Txog 150 rpm | |
| Cov menyuam kom muaj nuj nqis | 2 | |

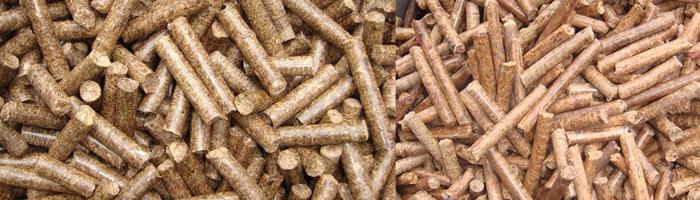

| Cov menyuam ø | 140 hli | Cov pellets zaum kawg los ntawm MZLH420 sawdust pellet ua tshuab |
| Pub sawdust loj | 3-5 hli |  |
| Pub sawdust noo noo | 12-15% | |
| Qhov ntev | 2950x1100x2150 hli | |
| Qhov hnyav | 3000Kg |
Cim npe nrov: Sawdust Pellet Ua Tshuab, Tuam Tshoj, tuam ntxhab, Hoobkas, yuav, pheej yig, nqe, kev muag khoom
