Ntoo Crusher Tshuab

Ntoo crushing tshuab yog ib hom crusher tshuab tig ntoo cav, ceg ntoo, khib nyiab, ntoo seem, pob tw, xyoob rau sawdust. Nws yog dav siv los ntawm ntoo pelletizing nroj tsuag, ntoo hmoov ua, edible fungi loj hlob, sawdust hlawv rauv., thiab lwm yam. Nrog rau cov hniav thiab hammers nyob rau hauv, nws muaj peev xwm txiav ntoo rau hauv pieces thiab ces ntaus lawv mus rau hauv sawdust los ntawm hammers tib lub sij hawm nyob rau hauv lub crushing chamber, yog vim li cas ntoo crusher kuj hu ua sawdust ua tshuab.

Xa kev nug

Hauj lwm lawm

Taw qhia ntawm ntoo crusher tshuab:

Lub tshuab crushing ntoo yog ib hom crusher tshuab tig ntoo cav, ceg ntoo, khib nyiab, ntoo seem, pob tw, thiab xyoob rau hauv sawdust. Nws yog dav siv los ntawm ntoo pelletizing nroj tsuag, ntoo hmoov ua, edible fungi loj hlob, sawdust burning furnaces., thiab lwm yam. Nrog rau cov hniav thiab hammers nyob rau hauv, nws muaj peev xwm txiav ntoo rau hauv pieces thiab ces muab lawv mus rau hauv sawdust los ntawm hammers tib lub sij hawm. nyob rau hauv lub crushing chamber, yog vim li cas ib tug ntoo crusher kuj hu ua sawdust sawdust-ua tshuab. peb tuaj yeem muab CE.

wood crushing machine 1

Technical data ntawmntoo crusher tshuab:

Qauv: FS400

Peev xwm: 400-600kg/h

Lub zog: 7.5kw

Hniav kom muaj nuj nqis: 4pcs

Qauv: FS500

Peev xwm: 600-800kg/h

Lub Zog: 18.5kw

Hniav kom muaj nuj nqis: 4pcs

Qauv: FS600

Peev xwm: 800-1200kg/h

Lub zog: 30kw

Hniav kom muaj nuj nqis: 4pcs

Qauv: FS700

Peev xwm: 1000-1500kg/h

zog: 37kw

Hniav kom muaj nuj nqis: 6pcs

Qauv: FS900

Peev xwm: 1500-2000kg/h

Lub zog: 55kw

Hniav kom muaj nuj nqis: 8pcs

Lub tshuab no muab cov chipping thiab crushing ua haujlwm rau hauv ib qho.
Nws yog tsim rau ntoo chips, ntoo ceg ntoo, ntoo cav, xyoob, biomass pov tseg, thiab lwm yam.
Cov ntoo ntoo loj tshaj plaws uas tuaj yeem muab tso rau hauv cov ntoo crusher yog tsawg dua 40cm.

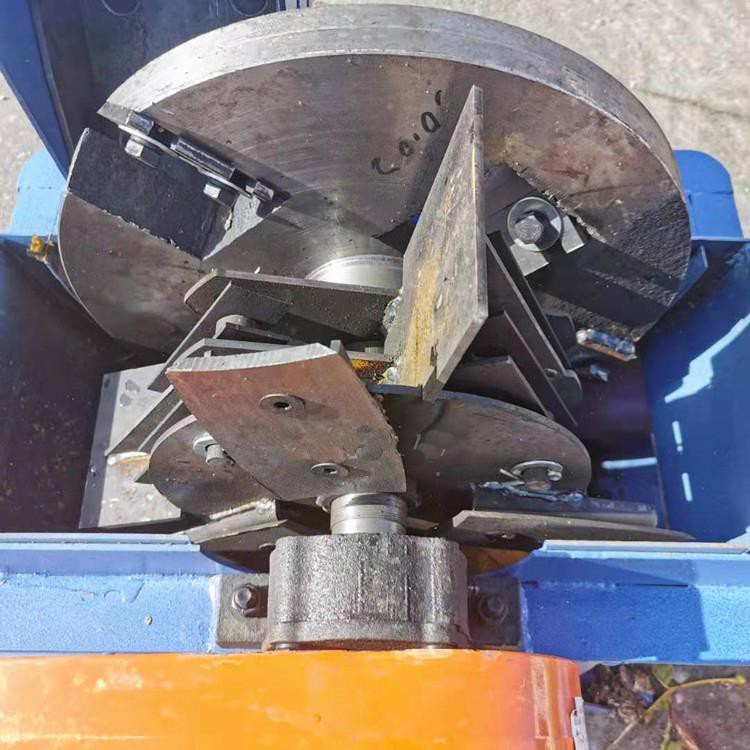

Hniav rau ntoo crusher tshuab:

1. Cov hniav riam thiab cov hniav disc, ntsia liaj qhov rooj, thiab lwm yam tseem ceeb yog ua los ntawm cov hlau alloy tshwj xeeb, uas muaj qhov zoo ntawm kev ruaj khov, tsis kam.

2.Nws yog ib qho yooj yim rau kev khiav lag luam thiab siab crushing piv

3.Nws yooj yim txav thiab yooj yim rau kev tsim khoom sab nraum zoov.

Raw khoom rau ntoo crusher tshuab

Cov khoom siv ua tsov rog tuaj yeem yog ntoo chips, ntoo cav, ntoo ceg ntoo, txiv maj phaub plhaub, taum stems, slabs, xyoob, pov tseg veneer, paj rwb stalks, thiab lwm yam biomass khib nyiab.
Qhov kawg ntau lawm yog sawdust. Qhov kawg sawdust loj tuaj yeem hloov kho tau los ntawm kev siv qhov sib txawv me me, lub sawdust txoj kab uas hla tuaj yeem yog 3 hli -20mm.

Kev tu rau ntoo crusher tshuab:

1. Cov bearings yuav tsum tau txhaj cov roj tom qab lub tshuab ua haujlwm rau peb mus rau plaub teev.

2. Kho qhov nruj ntawm V siv tom qab siv rau ib lub sij hawm, qis dua 6-10mm yog haum.

3. Ntxuav thiab tshuaj xyuas kom zoo txhua qhov ntawm lub tshuab, yog tias muaj kev ua haujlwm tsis zoo, kho nws raws sijhawm.

wood hammer mill models
