300Kg / h Cov Khaub Ncaws Khaub Ncaws Me Me Kab

Zhengzhou Fanda Machinery Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm 300kg / h me me ntxhua khaub ncaws xab npum kab hauv Suav teb. Nrog kev paub dhau los, peb zoo siab tos txais koj los yuav pheej yig 300kg / h me ntxhua khaub ncaws xab npum kab rau muag ntawm no los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.



Taw qhia txog 100-300Kg / h Cov Khaub Ncaws Me Me Cov Khaub Ncaws Kab

Lub tshuab ntxhua khaub ncaws tshuab ntxhua khaub ncaws no tuaj yeem ua rau ntxhua khaub ncaws xab npum thiab xab npum ntxhua khaub ncaws rau ntxhua khaub ncaws thiab ntxhua khaub ncaws, uas siv xab npum noodles thiab lwm yam khoom xyaw ua raw khoom; lub peev xwm tsim yog 100-300Kg / h rau cov ntxhua khaub ncaws ua tiav. Cov kab ntau lawm no tuaj yeem ua rau ntau qhov ntau thiab tsawg ntawm qhov nruab nrab - thiab qib high-qib ntxhua khaub ncaws soaps nrog TFM (tag nrho cov fatty acid) cov ntsiab lus ntawm 35% mus rau 72%.

Main raw khoom:Noodles xab npum

Cov khoom xyaw:Caustic soda, Zeolite, Perfume, pigment, lossis cov khoom xyaw raws li tus neeg yuav khoom tus qauv

Dej:Dej circulating nyob rau hauv lub tsho ntawm augers ntawm lub duplex nqus plodder kom txias cov cav tov

Installed zog:36.08Kw, hluav taws xob noj txog 25- 30 kWh.h

Installation loj:18 x 6 x 3.5 m (L x W x H)

Yuav tsum tau ua haujlwm: 4-5

Ua hauj lwm Flowchart rau 100-300Kg / h Khaub Ncaws Soap Kab

100-300Kg/h Cov Khaub Ncaws Me Cov Khaub Ncaws Cov Khaub Ncaws Kab Tshuab Daim Ntawv Teev Npe thiab Cov Ntaub Ntawv Cov Ntaub Ntawv

1. Sib tov

Qauv: WJ600, muaj peev xwm 75Kg ib batch, txog 5-6 feeb ib batch

Lub cev muaj zog: 4Kw, 380V, 50Hz, 3 theem lossis customized

Loj: 1400x800x1050mm

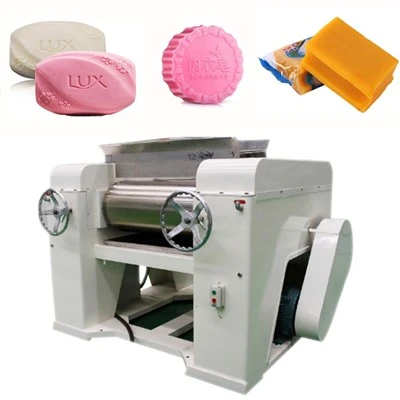

2. Peb- cov menyuam tshuab

Qauv: SG150, muaj peev xwm 300kg / h

Roller kom muaj nuj nqis: 3

Roller txoj kab uas hla: 150mm

Cov menyuam ua haujlwm thaj tsam ntev: 300mm

Lub cev muaj zog: 2.2Kw, 380V, 50Hz, 3 theem

Loj: 820x800x920mm

3. Duplex lub tshuab nqus tsev plodder

Qauv: ST180, muaj peev xwm 300Kg / h

Upper auger lub cev muaj zog: 5.5Kw, 380V, 50Hz, 3 theem

Lower auger lub cev muaj zog: 7.5Kw, ceev inverter adjustable

Lub zog cua sov: 2.5Kw

Loj: 2860x880x2220mm

4. Lub tshuab nqus tsev twj

Qauv: B8, muaj peev xwm 8 Litres / thib ob

Lub cev muaj zog: 1.1Kw, 380V, 50Hz, 3 theem lossis customized

Loj: 600x500x350mm

5. Lub tshuab ntxhua khaub ncaws ntxhua khaub ncaws

Txiav ntev: 60-1000mm adjustable

Max txiav thickness: 65mm

Max txiav dav: 100mm

Lub cev muaj zog: 1.5Kw, 380V, 50Hz, 3 theem lossis customized

Loj: 850x500x1100mm

6. Conveyors

6.1 Conveyor ntawm tov khoom thiab peb -roller zeb

Dimension: 3300x480x600mm, lub cev muaj zog 1.5kw

6.2 Conveyor nruab nrab ntawm peb -roller zeb thiab duplex plodder

Dimension: 4300x480x600mm, lub cev muaj zog 1.5kw

6.3 Conveyor tom qab txiav tshuab los sau cov xab npum ntxhua khaub ncaws

Dimension: 3300x450x850mm, lub cev muaj zog 1.5kw

7. Siab -kub chiller

Lub Zog: 4.48Kw

Cov cua txias: 5-20 degree

Loj: 1100x600x1050mm

8. Hluav taws xob vaj huam sib luag

Tswj tag nrho cov tshuab hauv cov kab ntau lawm

9. Ntim tshuab (Yeem)

Qauv: PT350

Ntim ceev: 40-150 hnab / feeb txiav txim siab los ntawm xab npum loj)

Ntim zaj duab xis yob dav: max 340mm

Ntim zaj duab xis yob txoj kab uas hla: max 320mm

Packing bag length:>50 mm

Ntim lub hnab dav: 30- 160 hli

Lub hnab ntim qhov siab: Tsawg dua lossis sib npaug li 60 hli

Lub cev muaj zog: 2.8Kw, 220V, 50/60Hz, ib theem

Loj: 3905x765x1375mm

100-300Kg/h Cov Khaub Ncaws Me Me Cov Khaub Ncaws Khaub Ncaws Kab Teeb Duab









Peb tuaj yeem muab 100-300kg / h, 300-500kg / h, 800-1000kg / h thiab 1500-2000kg / h Khaub thuas xab npum kab;

Peb tuaj yeem tsim pwm rau ntau lub tshuab ntxhua khaub ncaws thiab ntau thiab tsawg.

Peb tuaj yeem tsim pwm kom haum tus neeg yuav khoom xav tau rau ntxhua khaub ncaws ntxhua khaub ncaws zoo li, qhov loj me, thiab lub logo yuav tsum tau nias rau ntawm lub tshuab ntxhua khaub ncaws.
